Industrial Cameras
Area Scan Cameras: For Visible Light / NIR Spectrum
From cost-efficient board level cameras to full-featured high performance cameras, Teledyne Vision Solutions provides a broad and deep area scan camera portfolio to meet the challenges of today’s imaging applications. Teledyne’s area scan cameras offer support for a variety of interfaces, such as GigE Vision® (1/5/10GigE), USB3 Vision®, Camera Link®, Camera Link HS®, and CoaXPress®, to allow seamless integration with virtually any imaging system.
Line Scan Cameras: Single Line, Multi-line, and TDI Technology at its Best
Teledyne Vision Solutions delivers innovation from the line scan leader. Our line scan cameras provide advanced CMOS sensor technology available in 2k, 4k, 8k, 16k and 32k resolutions, with specific models for near and short-wave infrared (NIR, SWIR) applications. Teledyne’s a line scan cameras offer support for GigE, Camera Link, Camera Link HS, and Fiber interfaces making them ideal for a wide variety of applications.
Teledyne high sensitivity line scan products use TDI (time delay and integration) technology which provides dramatically increased responsivity compared to other video scanning methods. It allows faster scanning speeds in low light and reduced lighting levels at conventional speeds. From wafer, PCB, and LCD panel inspection to high-end document scanning, Teledyne high sensitivity line scan cameras deliver an unmatched mix of sensitivity and speed.
Industrial 1D Line Scan & TDI Cameras View Category Page
Single line, multi-line, & TDI technology at its best.
Filters:
Linea HS2
16K TDI with a 1 MHz Line Rate
- Exceptional image quality with 16K/5 µm resolution
- Backside illuminated for ultra-high-speed imaging
- Dual CLHS interface - 16 GigaPixel/s data throughput
Linea Lite
Compact, Cost-Effective
- Up to 4K resolution
- TurboDrive™ enables full image quality at line rates up to 50 kHz sustained
- Bilinear color maximizes color fidelity
Linea
High Performance Mono GigE
- High performance at a great price point
- 2k - 16K, mono and color options
- Multiple interface options
Linea ML
Leading-Edge CMOS
- 8K and 16K at 300 kHz resolution
- Native fiber optic interface for low-cost long cabling
- CLHS interface with fiber options

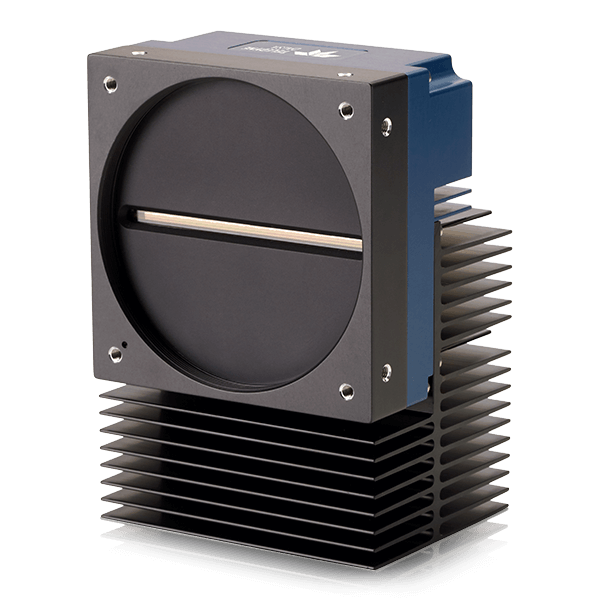

Linea HS
Charge-Domain TDI
- Advanced TDI line scan camera
- Line rates up to 400 KHz @ 32K resolution, mono / color / multifield
- CLHS & Fiber Optic

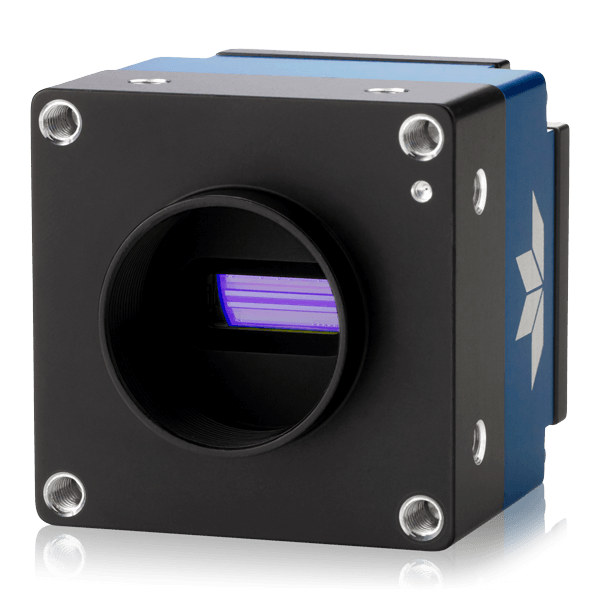

Linea SWIR
InGaAs GigE
- Available as 1k with 12.5 µm pixels, or 512 resolution with 25 µm pixels
- Short-Wave Infrared (950-1700 nm)
- 40 kHz line rate, GigE
AxCIS
Line Scan Contact Image Sensor
- Lights, camera, and lenses all-in-one
- Latest Teledyne quadlinear CMOS sensors
- Scan widths up to 1500 mm, 600 DPI and 900 DPI models available

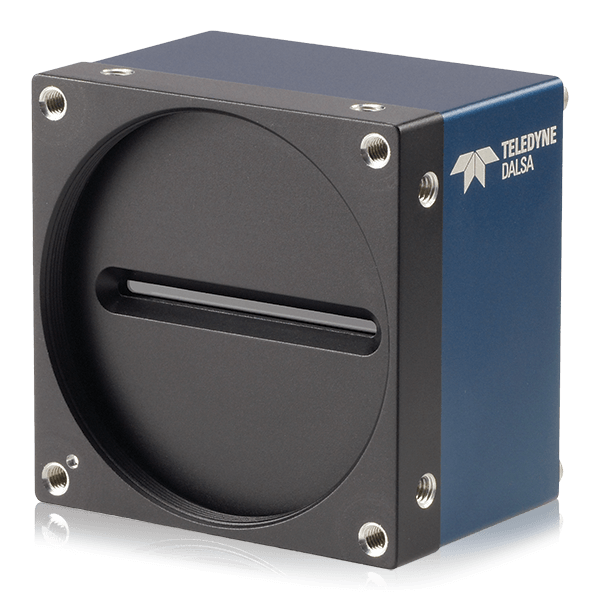

Piranha4
For Maximum Throughput
- High Performance Color, Advanced Features, and Programmability
- 2K to 8K resolutions
- Camera Link
ELiiXA+ (Legacy)
High-Speed Multi-Line CMOS
- Combines high response with an extremely low noise level
- 2K - 16K , mono & color options
- Camera Link, 5 GigE, CoaXPress
UNiiQA+ (Legacy)
Cost-Effective CMOS
- The best value for money CMOS line scan cameras
- 2,048 × 1 to 16,384 × 1 resolution, Up to 140 KHz
- Camera Link, NBASE-T Ethernet
OctoPlus
The Next Generation of OCT
- Flexible range of OCT line scan cameras (60+ models available)
- 2,048 × 1 resolution
- Configurable interface, pixel size, line rate, bit depth, and more
Industrial 2D Area Scan Cameras View Category Page
From full-featured high performance cameras, to cost-efficient board level cameras, Teledyne Vision Solutions provides a broad and deep area scan camera portfolio to meet the challenges of today’s imaging applications.
Filters:
Blackfly S USB3
Light and Compact USB3 camera
- Resolutions from VGA to 24 MP, visible and Polarized
- Advanced Features: Color Correction, Sequencer, Lossless compression and Lens shading correction
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
Genie Nano 10GigE
Compact Industrial 10-Gigabit Ethernet Cameras
- Resolutions from 37.7 MP to 67 MP
- Industry’s smallest 67 MP 10GigE Vision camera
- Supports speeds of 1, 2.5, 5, & 10-Gbps GigE Vision Interface, with PoE
Dragonfly S USB3
Ultra Light and Compact USB3 camera
- Resolutions from VGA to 12 MP
- Board-level to fully enclosed models with lightweight aluminum case and EMC Class B compliant
- Side or back USB3 connector orientations with locking adaptor

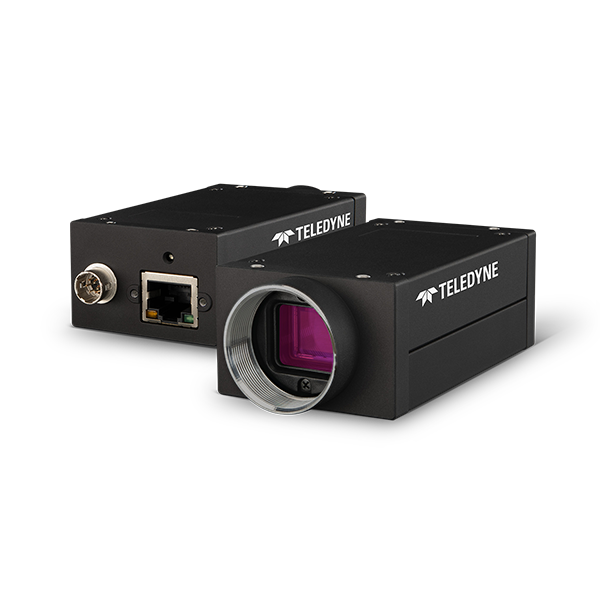

Forge 5GigE
Beyond 5GigE Performance
- Resolutions from 5 MP to 24 MP
- Up to 10GigE Burst Mode Performance with Sony Pregius S sensors
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE
Blackfly S GigE
Light and Compact GigE camera
- Resolutions from VGA to 24 MP, visible and Polarized
- Advanced Features & Lossless Image Compression (LLC)
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI

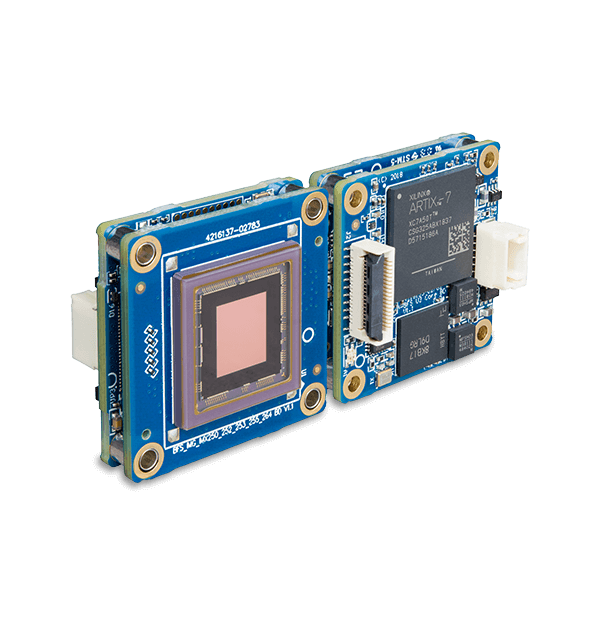

Blackfly S Board Level
Designed for Embedded Vision Systems with Complete Accessories
- Resolutions from 1.6 MP to 20 MP
- Compact and light: 29 x 29 x 12 mm / 10 g, Compatible with popular SBCs and 3rd party software
- 1-Gbps GigE Vision Interface with PoE, and USB3 Vision
Oryx 10GigE
High bandwidth image transfer
- Resolutions from 3.2 MP to 31 MP
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
- Supports speeds of 1 and 10-Gbps GigE Vision Interface, with PoE
Firefly S
Ultra Compact and light USB3 camera
- Resolutions: VGA, 1.6 MP
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, Denoise, AGC with ROI
- Wide Operating temperature range, up to 85C
Falcon4-CLHS
Extreme High-Speed Global Shutter CMOS Cameras
- Resolutions from 2.8 MP to 67 MP
- Up to 43 000 FPS in Partial Scan & Moving Multi ROI capability
- Up to 7 GB/s with CameraLink HS Interface

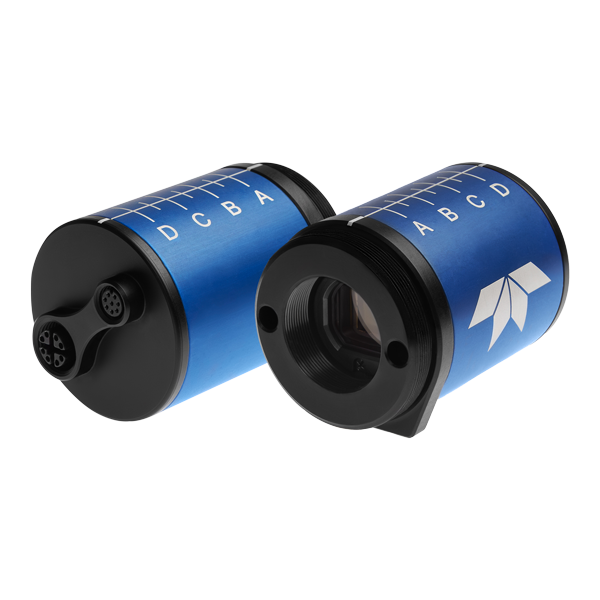

Forge 1GigE IP67
Compact IP67 solution with complete ecosystem
- Resolutions from 1.2 MP to 12 MP
- Advanced Features & Lossless Image Compression (LLC)
- 1-Gbps GigE Vision Interface, with PoE
Forge 1GigE SWIR
High-Performance, Compact, and Reliable
- Resolution up to 1.3 MP
- Very compact SWIR form factor, supports wavelengths from 400 nm to 1.7 um
- 1-Gbps GigE Vision Interface, with PoE
Genie Nano 5GigE
Beyond 5GigE Performance
- Resolutions from 3.2 MP to 45 MP
- Up to 10GigE Burst Mode Performance & Lossless Image Compression (TurboDrive)
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE

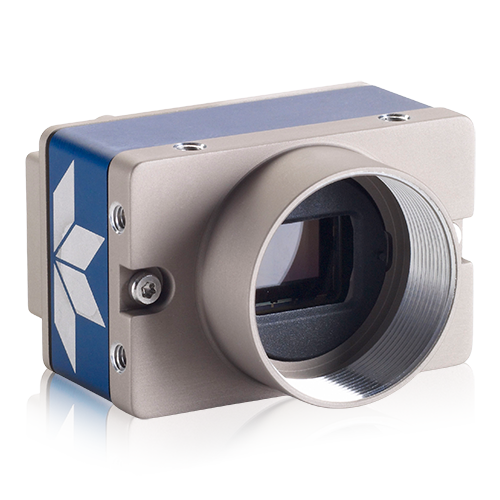

Genie Nano GigE
High Speed GigE Vision cameras with Wide temperature range
- Resolutions from 0.3 MP to 25 MP
- Up to 14 000 FPS in Partial Scan & Lossless Image Compression (TurboDrive)
- 1-Gbps GigE Vision Interface, with PoE
Genie Nano-CL
Compact CameraLink Cameras
- Resolutions from 5 to 25 MP
- Sony Pregius Gen2 sensors
- Base and Deca Mode CameraLink™ Interface, with PoCL
Genie Nano-CXP
Compact CoaXPress Cameras
- Resolutions from 16 to 67 MP
- Advanced sequencer mode & Metadata
- Up to 4-lanes CoaXPress 6 Gbps interface
LT Series Board Level
USB3 Vision Board Level Cameras
- Resolution from 1.7 MP to 8 MP
- Side-mounted USB connectors for ease of use in OEM solutions
- Micro-B USB3 Vision Interface
LT Series USB3
Slim USB3 Vision Cameras
- Resolution from 1.7 MP to 31 MP
- Latest Sony sensors & Burst Mode capability
- Micro-B USB3 Vision Interface
Smart Cameras and Vision Sensors View Category Page
Complete, compact, self-contained vision systems for end-users.
Filters:
BOA3
Flexible Smart Camera for Industrial Automation
- Resolution up to 12 MP
- On-camera AI
- Includes full toolkit of inspection algorithms and image processors
BOA Spot
Compact Vision System with Integrated Lens and Lighting
- High value capabilities at a low cost of ownership
- Well-equipped with popular vision tools
- For automated inspection and identification applications
BOA2
High Resolution Smart Camera for Industrial Automation
- Second generation Smart Camera with resoltuion up to 5 MP
- Capture the smallest defects
- Powerful embedded machine vision inspection software
BOA
Original Smart Camera
- Run inspection software directly on camera
- Variety of sensors and processor to fit any automation application
- Provides standard industrial Ethernet protocols for integrating into the factory network
