Industrial 2D Area Scan Cameras
The Right Sensors. The Right Interface.
Teledyne area scan cameras are based on the industry’s most innovative image sensor technology from manufacturers including Sony®, On Semiconductor® and of course our own Teledyne e2v sensors.
Teledyne area scan cameras offers support for a variety of interfaces, such as GigE Vision® (1 to 10 GigE), USB3 Vision®, Camera Link®, Camera Link HS®, and CoaXPress®, to allow seamless integration with virtually any imaging system.

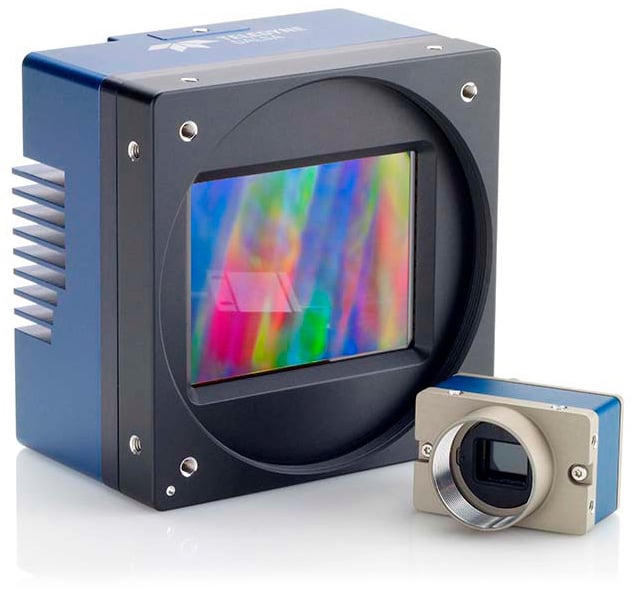

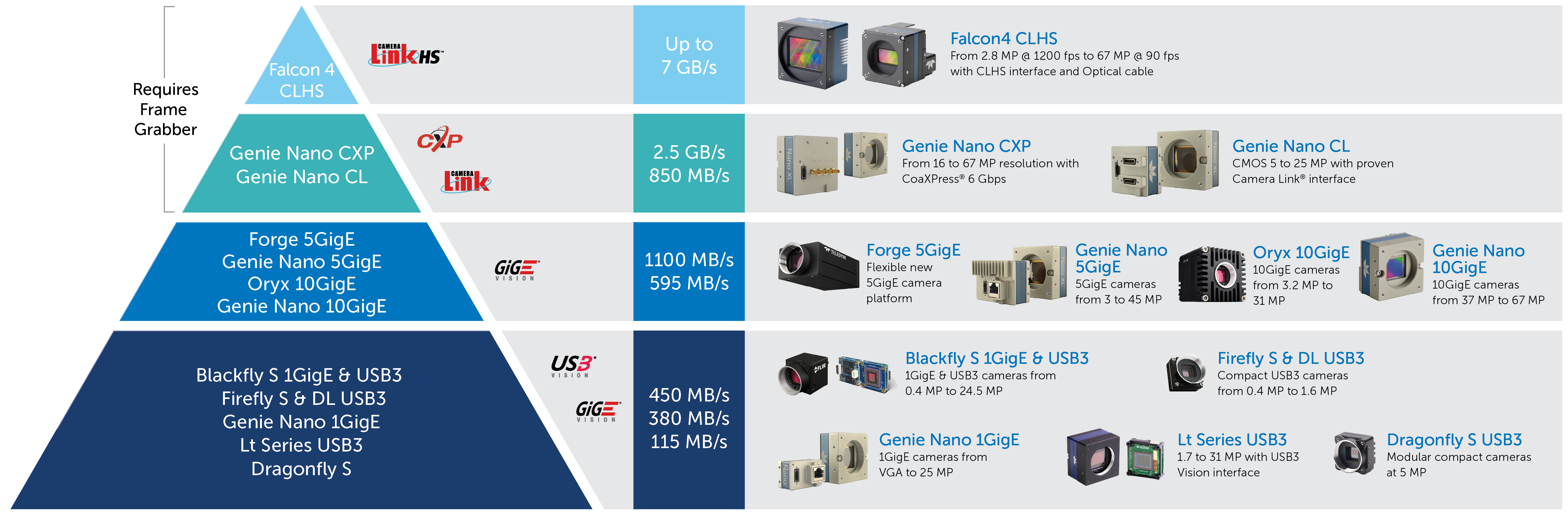

Camera Selection
A range of image resolutions from tiny details with small sensors, found in the compact Dragonfly S and Genie Nano Camera line up, to Medium Format sensors found in Falcon4 cameras when the resolution is the highest priority.

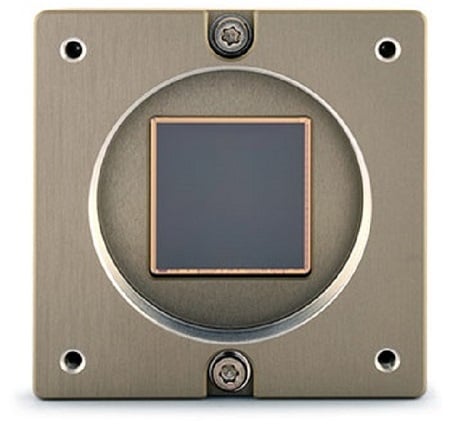

Image Quality
Industry’s latest CMOS sensors offering high dynamic range, low-noise sensitivity, vivid color images, and high frame rates.

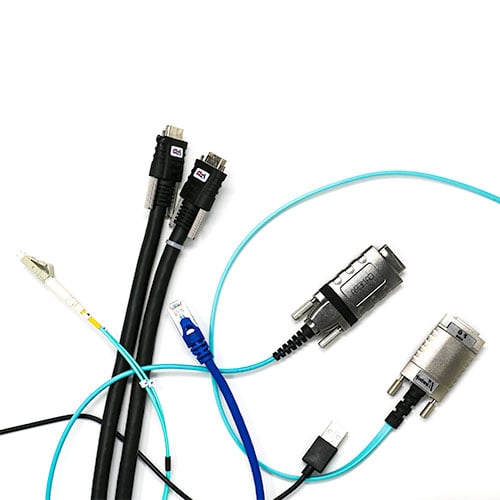

Camera Interfaces
Support for a wide variety of cameras interfaces ranging from USB3 and 1/5/10GigE, to CameraLink, CameraLinkHS, and CoaXPress.
Imaging Applications
Applications range from a variety of industries including factory automation, intelligent traffic systems (ITS), industrial inspection, aerial imaging, surveillance, and more…
Filters:
Blackfly S USB3
Light and Compact USB3 camera
- Resolutions from VGA to 24 MP, visible and Polarized
- Advanced Features: Color Correction, Sequencer, Lossless compression and Lens shading correction
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
Genie Nano 10GigE
Compact Industrial 10-Gigabit Ethernet Cameras
- Resolutions from 37.7 MP to 67 MP
- Industry’s smallest 67 MP 10GigE Vision camera
- Supports speeds of 1, 2.5, 5, & 10-Gbps GigE Vision Interface, with PoE
Dragonfly S USB3
Ultra Light and Compact USB3 camera
- Resolutions from VGA to 12 MP
- Board-level to fully enclosed models with lightweight aluminum case and EMC Class B compliant
- Side or back USB3 connector orientations with locking adaptor
Forge 5GigE
Beyond 5GigE Performance
- Resolutions from 5 MP to 24 MP
- Up to 10GigE Burst Mode Performance with Sony Pregius S sensors
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE
Blackfly S GigE
Light and Compact GigE camera
- Resolutions from VGA to 24 MP, visible and Polarized
- Advanced Features & Lossless Image Compression (LLC)
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
Blackfly S Board Level
Designed for Embedded Vision Systems with Complete Accessories
- Resolutions from 1.6 MP to 20 MP
- Compact and light: 29 x 29 x 12 mm / 10 g, Compatible with popular SBCs and 3rd party software
- 1-Gbps GigE Vision Interface with PoE, and USB3 Vision
Oryx 10GigE
High bandwidth image transfer
- Resolutions from 3.2 MP to 31 MP
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
- Supports speeds of 1 and 10-Gbps GigE Vision Interface, with PoE
Firefly S
Ultra Compact and light USB3 camera
- Resolutions: VGA, 1.6 MP
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, Denoise, AGC with ROI
- Wide Operating temperature range, up to 85C
Falcon4-CLHS
Extreme High-Speed Global Shutter CMOS Cameras
- Resolutions from 2.8 MP to 67 MP
- Up to 43 000 FPS in Partial Scan & Moving Multi ROI capability
- Up to 7 GB/s with CameraLink HS Interface
Genie Nano 5GigE
Beyond 5GigE Performance
- Resolutions from 3.2 MP to 45 MP
- Up to 10GigE Burst Mode Performance & Lossless Image Compression (TurboDrive)
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE
Genie Nano GigE
High Speed GigE Vision cameras with Wide temperature range
- Resolutions from 0.3 MP to 25 MP
- Up to 14 000 FPS in Partial Scan & Lossless Image Compression (TurboDrive)
- 1-Gbps GigE Vision Interface, with PoE
Genie Nano-CL
Compact CameraLink Cameras
- Resolutions from 5 to 25 MP
- Sony Pregius Gen2 sensors
- Base and Deca Mode CameraLink™ Interface, with PoCL
Genie Nano-CXP
Compact CoaXPress Cameras
- Resolutions from 16 to 67 MP
- Advanced sequencer mode & Metadata
- Up to 4-lanes CoaXPress 6 Gbps interface
LT Series Board Level
USB3 Vision Board Level Cameras
- Resolution from 1.7 MP to 8 MP
- Side-mounted USB connectors for ease of use in OEM solutions
- Micro-B USB3 Vision Interface
LT Series USB3
Slim USB3 Vision Cameras
- Resolution from 1.7 MP to 31 MP
- Latest Sony sensors & Burst Mode capability
- Micro-B USB3 Vision Interface
