X-Ray Imaging
Teledyne Vision Systems offers powerful, innovative CCD and CMOS X-Ray detectors combining industry-leading performance with cutting-edge features for industrial and scientific applications such as NDT (non destructive testing) in evaluation, troubleshooting, research, and quality control.
Cabinet X-Ray Detectors View Category Page
Powerful, sensitive x-ray detectors for industrial cabinet enclosures including large area, high resolution, high speed, and specialized remote detectors
Rad-icon
Large Area CMOS X-Ray
- Large active area: up to 30 × 30 cm
- 5 or 10 lp/mm resolution (99 or 49.5 µm pixels)
- Energy range from 10 to 225 kV
Rad-Xcam
High Speed IGZO Flat X-Ray Detector for Industrial Applications
- Better Images
- Lower Dose
- Lower Cost
Remote RadEye HR
Detachable X-Ray Detector
- Industrial inspection, biomedical, and scientific applications
- Active area 33.0 x 24.9 mm
- USB interface with 12-bit digital video output
RadEye XR
Ultra-High-Resolution Detector
- Ultra High Resolution
- Active area 64.3 x 48.4 mm
- Best in class image quality
Shad-o-Box HS
Dynamic X-Ray Detectors
- High-Resolution Real-Time X-Ray Imaging
- High-speed, high performance X-ray imaging experience
- 7 Models to choose from with array of pixel and resolution options
Scanning X-Ray Detectors View Category Page
Scanning X-ray detectors specifically designed for the challenging requirements of high-performance industrial and scientific X-ray applications.
Shad-o-Scan
Scanning X-Ray Detectors
- Radiation hardened CMOS technology
- Low power consumption
- Ready-to-run software and drivers
Scientific X-Ray Cameras View Category Page
PI-MTE3
Fully In-Vacuum, Direct Detection X-Ray Cameras
- Fully in-vacuum CCD camera with scattering angle flexibility
- ~10 eV to 30 keV x-ray energy sensitivity
- Large sensor formats: 2k and 4k
PIXIS-XB
High Performance, Low Noise X-Ray Camera
- ~3 – 20 keV x-ray sensitivity
- Beryllium (Be) window in vacuum chamber
- Flexible dual-amplifier readout design
PIXIS-XF
Low Noise, Indirect Detection X-Ray Camera
- <3 to >20 keV x-ray sensitivity
- Front- or back-illuminated CCD options
- Flexible dual-amplifier readout design
PIXIS-XO
Low Noise, EUV and Soft X-Ray Camera
- Direct Detection up to 20 keV
- Deep Cooling and low dark currents for ultra low signal detection
- Rotatable ConFlat flange with high vacuum seal

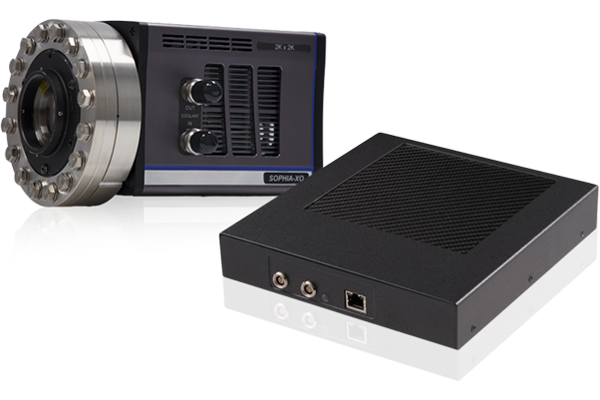

SOPHIA-XO
EUV and Soft X-Ray Cameras
- ~5 eV – 30 keV coverage with >95% peak QE
- 2k x 2k and 4k x 4k formats
- 1, 2 and 4 port readout and -90℃ cooling
