Snappy Wide

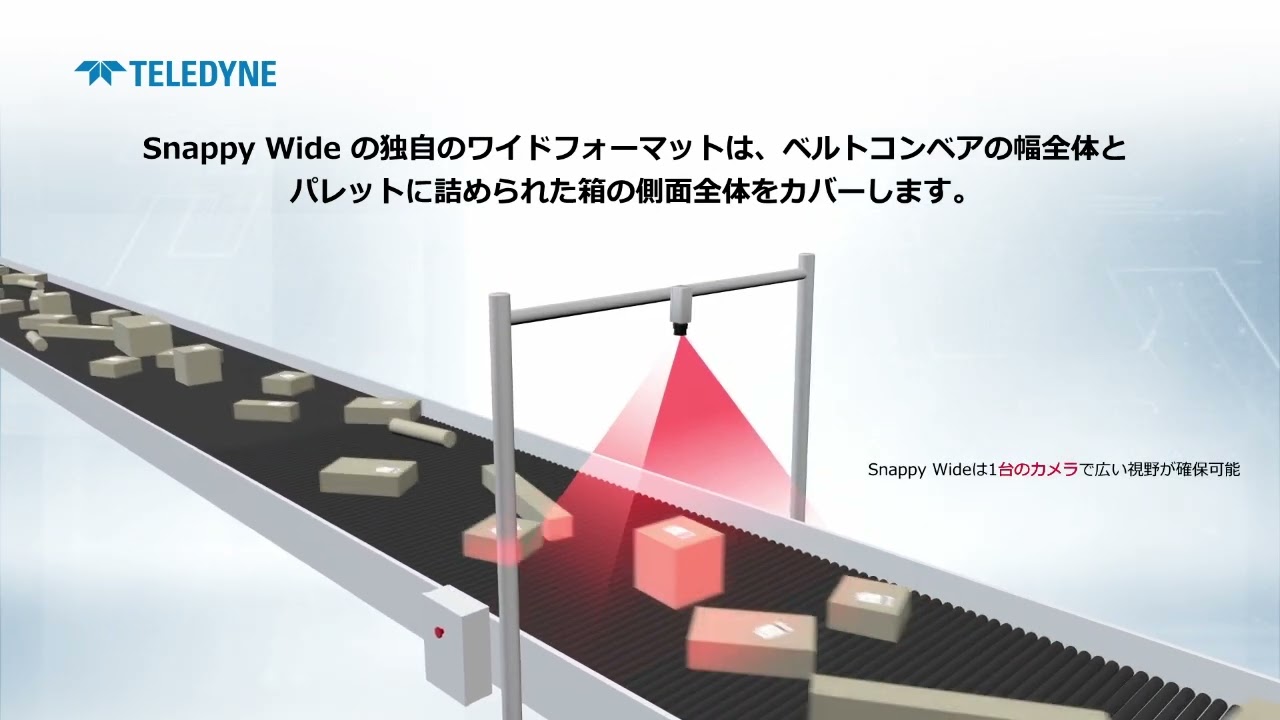

Scanning 1D and 2D codes at high speeds in modern warehouses and logistics systems is a challenge that has resulted in the industry moving towards higher resolution imagers. This enables a single fixed camera to be deployed on a large conveyor belt system to scan packages across its entire width. The unique wide formats supported by Teledyne e2v’s Snappy Wide™ sensor ensure that unused and costly pixels (typically redundant from square or 4:3 formats), are avoided and allow lower cost optics, which significantly reduces the system cost. High-end electro-optical characteristics ensure the best performance and superb overall image quality. Snappy Wide can also support ultra-high-speed dual line scanning applications.
Covers a large field of view
Snappy Wide is a new 8K wide aspect ratio CMOS image sensor designed specifically for logistics applications where larger conveyor belts are becoming increasingly common. A single Snappy Wide sensor can cover this large field of view successfully, replacing multiple sensors for a more efficient and cost-effective solution.
Pristine images
Snappy Wide has a small 2.5 µm global shutter pixel, designed with Teledyne e2v’s latest generation light pipe technology, which provides 66 dB dynamic range in 12-bit ADC mode. The sensors have low read-out noise, which is paramount for barcode reading, with a good MTF in any kind of environment, and low dark current to ensure pristine image quality, even in very low-light conditions. Only <2w of power is used at full speed and full resolution.
No wasted pixels
With a 33 mm x 24.5 mm CLGA package size, Snappy Wide is available now in black and white, and color versions, in 35M (8,192 x 4,320), 28M (8,182 x 3,500) and 16M (8,192 x 2,000) resolutions. On-demand ROI, such as 5K or 6K pixels/line is also an option. Unlike a square format CMOS image sensor, using Snappy Wide results in no wasted pixels and less costly optics can also be used, resulting in a lower overall system cost.
Model Finder
| Product | Resolution | Pixel Pitch (µm) | Shutter Type | Frame/Line Rate | Price | Compare | Options |
|---|---|---|---|---|---|---|---|
Snappy Wide 16M
EV2S16MB-CLV0001-T
|
16.3M | 2.5 | Global | 130 fps | In Production Request Info |
|
|
Snappy Wide 28M
EV2S28MB-CLV0001-T
|
28.6M | 2.5 | Global | 75 fps | In Production Request Info |
|
|
Snappy Wide 35M
EV2S35MB-CLV0001-T
|
35.3M | 2.5 | Global | 65 fps | In Production Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
Snappy Wide Flyer
Standard CMOS Image Sensor Guide
