SOPHIA
The Sophia® camera series is designed from the ground up for the most demanding low-light applications, It has back-illuminated CCD sensors with ≥95% peak QE, 2048 x 2048 resolution with 13.5 and 15-micron pixels, and high frame rates with up to 4-port readout. The camera also has ultra-low-noise electronics with high sensitivity (≥95% QE), speed, and flexibility with multi-port readout capabilities up to 16 MHz and high frame rates.
Ultra-flexible performance

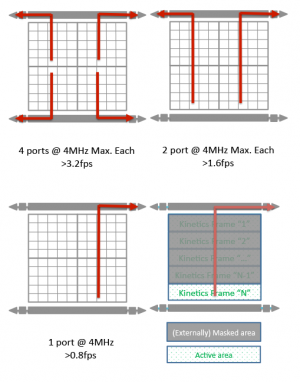

The SOPHIA provides multiple readout modes, with complete triggering support and independently optimized clocking for each combination, even ultrafast events can be captured.
The SOPHIA also contains a field-replaceable internal mechanical shutter for enhanced flexibility.
ArcTec™ cooling technology

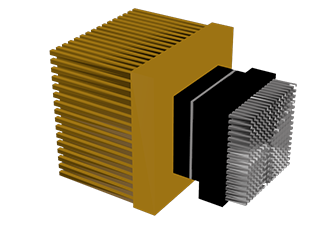

Taking advantage of an all-metal hermetically sealed vacuum design, the ArcTec™ cooling technology prevents outgassing or long-term degradation. A custom heat sink design is utilized to ensure efficient thermal dissipation from the sensor and electronics.
The ArcTec™ available are air cooling only, liquid cooling only (for vibration-sensitive environments), or a combination.
SOPHIA 4096B Features
Improved Optical Design

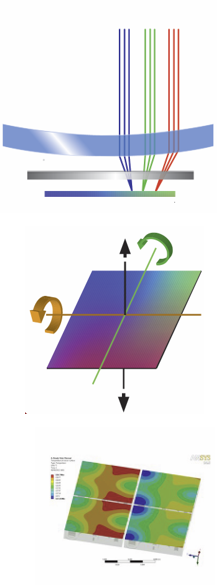

The SOPHIA4096B has an improved field flattener and reduced window-to-CCD surface distance and window thickness. It offers improved edge sharpness and lower distortion.
Repeatable CCD positioning
With the ability to “zero out” variability in mechanical assembly, the SOPHIA 4096B can achieve precise, repeatable CCD orientation. The adjustable tilt, pitch and z-axis translation reduces the requirement for system-level adjustment.
Multi-TEC Design
The redesigned CCD cooling mechanism and vacuum chamber guarantees even heat dissipation for very large CCD formats, withstanding thermal cycling.
Powered by LightField software
Powerful and intuitive software with built-in math engine allows for the complete control of cameras and spectrographs, with real-time image analysis and spectral data.
LightField software provides seamless integration of hardware controls and direct data acquisition into programmes such as National Instruments’ LabVIEW® and MathWorks’ MATLAB®. This software also fully supports IntelliCal automated wavelength and intensity calibration.
The SOPHIA can also be fully controlled by PICAM SDK, eliminating any overhead that can occur when communicating through other development environments.
Family Highlights
| Dark current at -90℃ | 0.0001 e-/p/s |
|---|---|
| Imaging area | 27.6 x 27.6 mm |
| Deepest cooling temperature | < -90℃ with liquid chiller or air |
| Cooling method | Thermoelectric air or liquid cooling |
| Supported interfaces | USB 3.0 |
Model Finder
| Product | FOV | Pixel Size | QE | Read Noise | Dark Current | FWC | Sensor | Price | Compare | Options |
|---|---|---|---|---|---|---|---|---|---|---|
SOPHIA 2048-15
SOP-2048B-152
|
30.7 x 30.7 mm | 15 µm | > 95% | 3.6 e⁻ | 0.00025 e⁻/p/s @ -90 °C | 150 ke⁻ | Teledyne e2v CCD230-42 | In Production Request Info |
|
|
SOHPIA 2048-13
SOP-2048BR-132
|
27.6 x 27.6 mm | 13.5 µm | >95% | 3.5 e⁻ | 0.0001 e⁻/p/s @ -90 °C | 100 ke⁻ | Teledyne e2v CCD42-40 | In Production Request Info |
|
|
SOPHIA 4096
SOP-4096B-154-MBAR
|
61.4 x 61.4 mm | 15 µm | >90% | 4 e⁻ | 300 ke⁻ |
•Teledyne e2V CCD230-84 •Teledyne e2v 231-84 |
In Production Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
You must be logged in to download software or firmware. Please sign in or create an account here.
LightField
PICAM SDK & Driver
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
SOPHIA Manual
