3D Depth Maps and 2D Vision in One

Topaz5D

Topaz5D™ is a unique combination of 1,920 x 1,080 resolution, low noise global shutter, 2D and 3D image sensor, designed with Teledyne e2v’s proprietary CMOS technology and specific 3D post-processing optical layers. This delivers uncompromised 2D and 3D data in parallel on a single sensor.

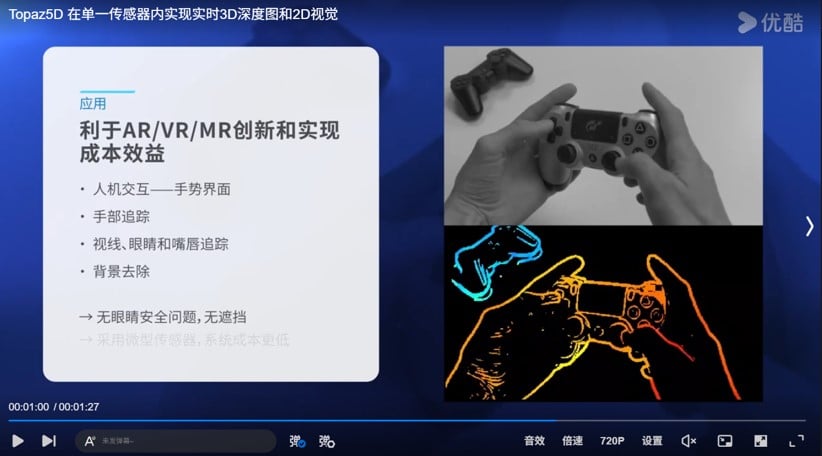

Watch Video


Innovative Sensor Technology

Topaz5D has 2.5 μm pixels and is housed in a tiny Chip Scale Packaging (CSP) which makes it ideal for space limited mobile applications. This sensor includes a truly innovative ‘angular sensitive pixel’ technology, so it can generate RAW 3D data, for real-time software processing of 3D depth maps.

No Illumination Required

Indoor or outdoor and whatever the colors involved, all contrast differences and object edges are delineated with clarity in 3D vision. 2D images and 3D depth maps are delivered at very fast video frame rates with low power consumption and no additional specific lighting is required, keeping systems costs to a minimum.



Applications

  • Consumer household cleaning robots
  • Autonomous Mobile Robot (AMR)
  • AR/VR headsets for hand/eye tracking
  • 3D assisted access control and anti-spoofing
  • Logistics; box dimensioning (fixed or handheld), label placement, tote filling and pallet inspection, pick & place stations, etc.







Model Finder

Product Resolution Pixel Pitch (µm) Shutter Type Frame/Line Rate Price Compare Options
Topaz5D Mono (with foil)
EV2S02MB-PM26201-T
2M 2.5 Global 65 fps In Production Request Info Topaz5D
Topaz5D Color (with foil)
EV2S02MC-PM26101-T
2M 2.5 Global 65 fps In Production Request Info Topaz5D

Media gallery

Optimom and Topaz5D Live in Action!
Optimom and Topaz5D Live in Action!

Resources & Support

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

Standard CMOS Image Sensor Guide

Brochure

Last Updated: 五月 28, 2024

Download

Topaz5D Flyer
